Mid-USA Hardbody Wide Style Gen 2 Springer Front End 2 Inch Under Length – Black

These Mid-USA springers offer an affordable alternative to other sub-standard springers on the market and feature one piece rear legs for added strength. Available in chrome or black in standard length as well as -2, and +2, lengths for custom applications.

• Rocker grease fittings
• Fully assembled with a forged in-line top bracket without a built-in rake
• The standard length Springer (24″ measured from the bottom bearing to the axle center) is comparable to a standard length FXST front end

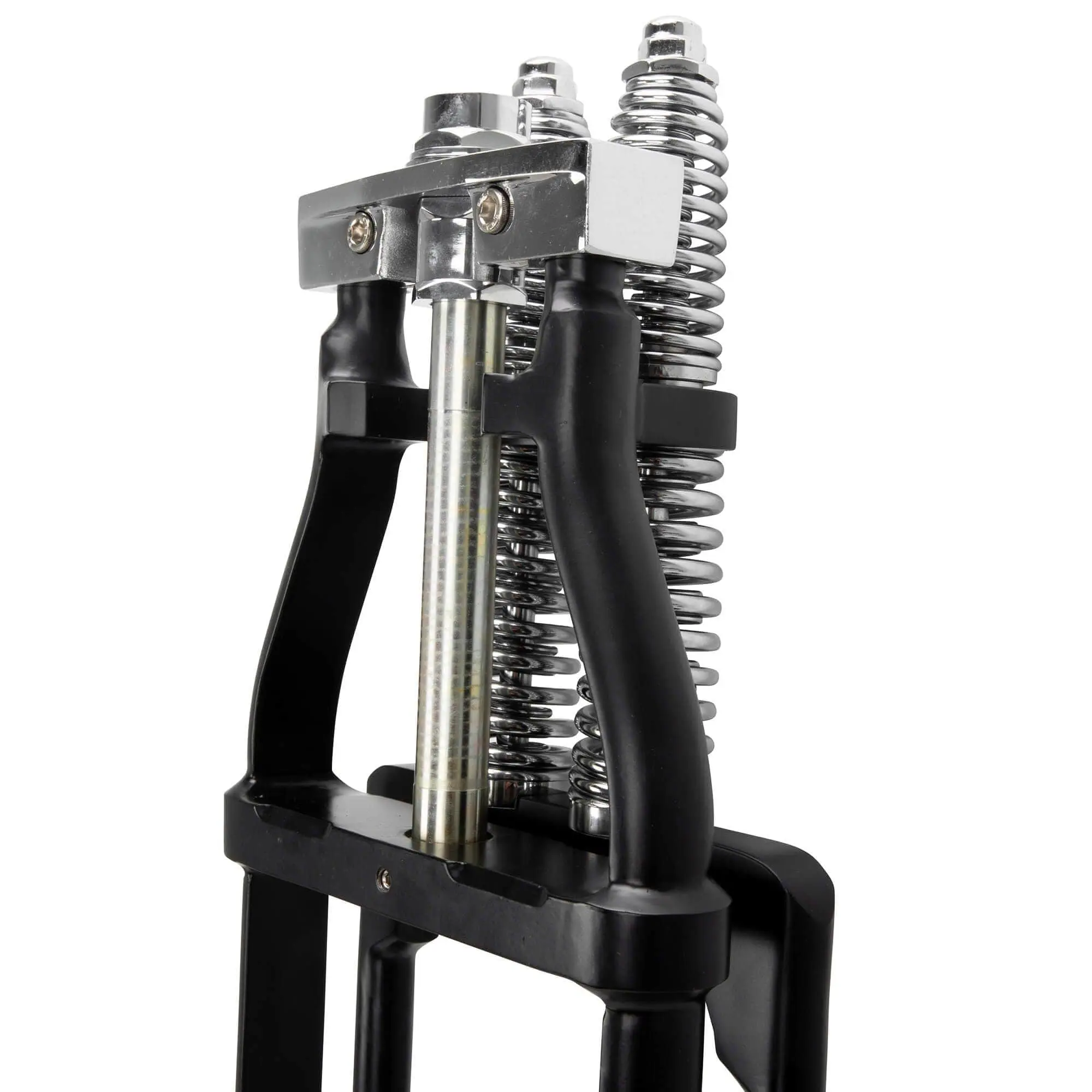

• 1″ O.D. steering stem designed for Timken type bearings
• Both rear legs are threaded for right or left brakes

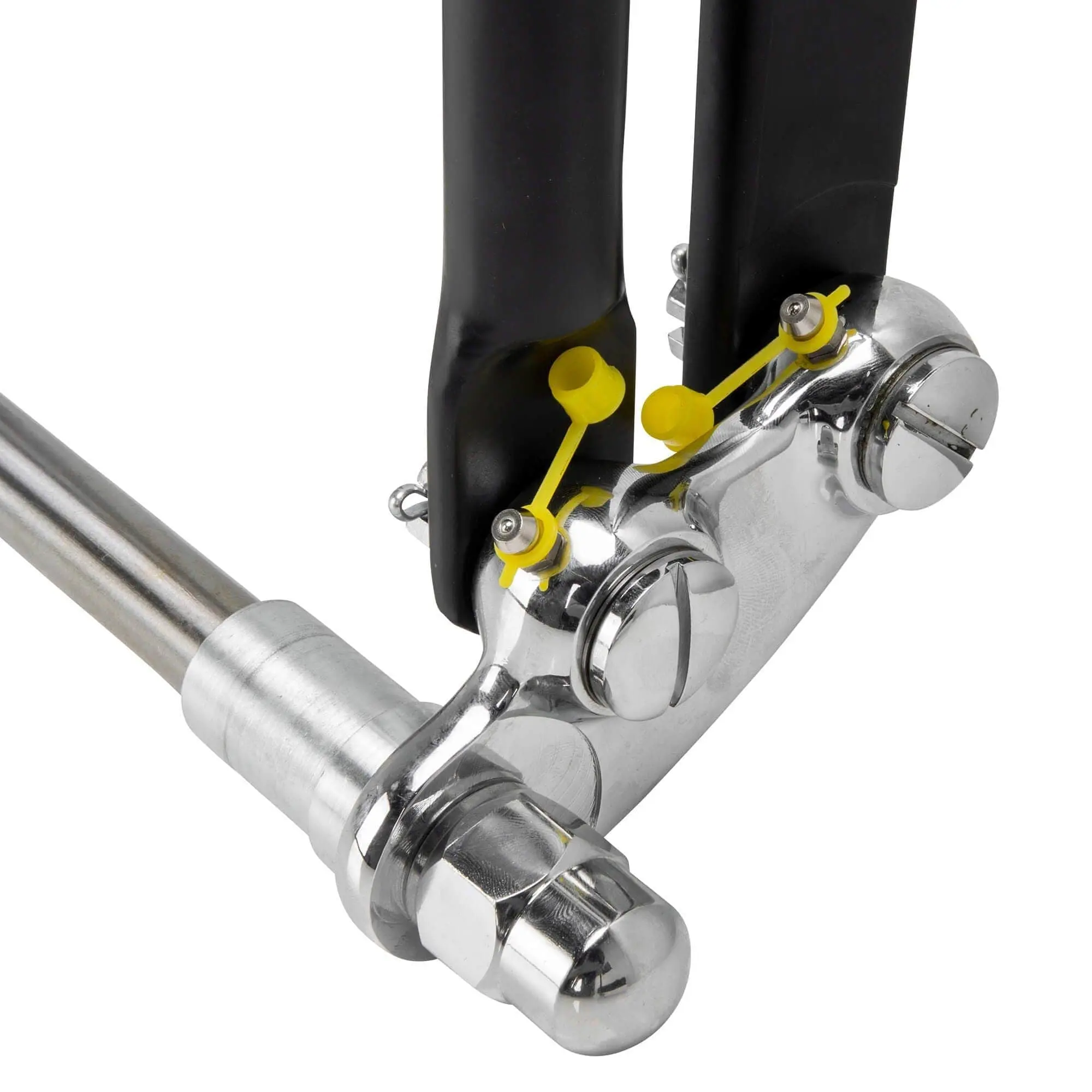

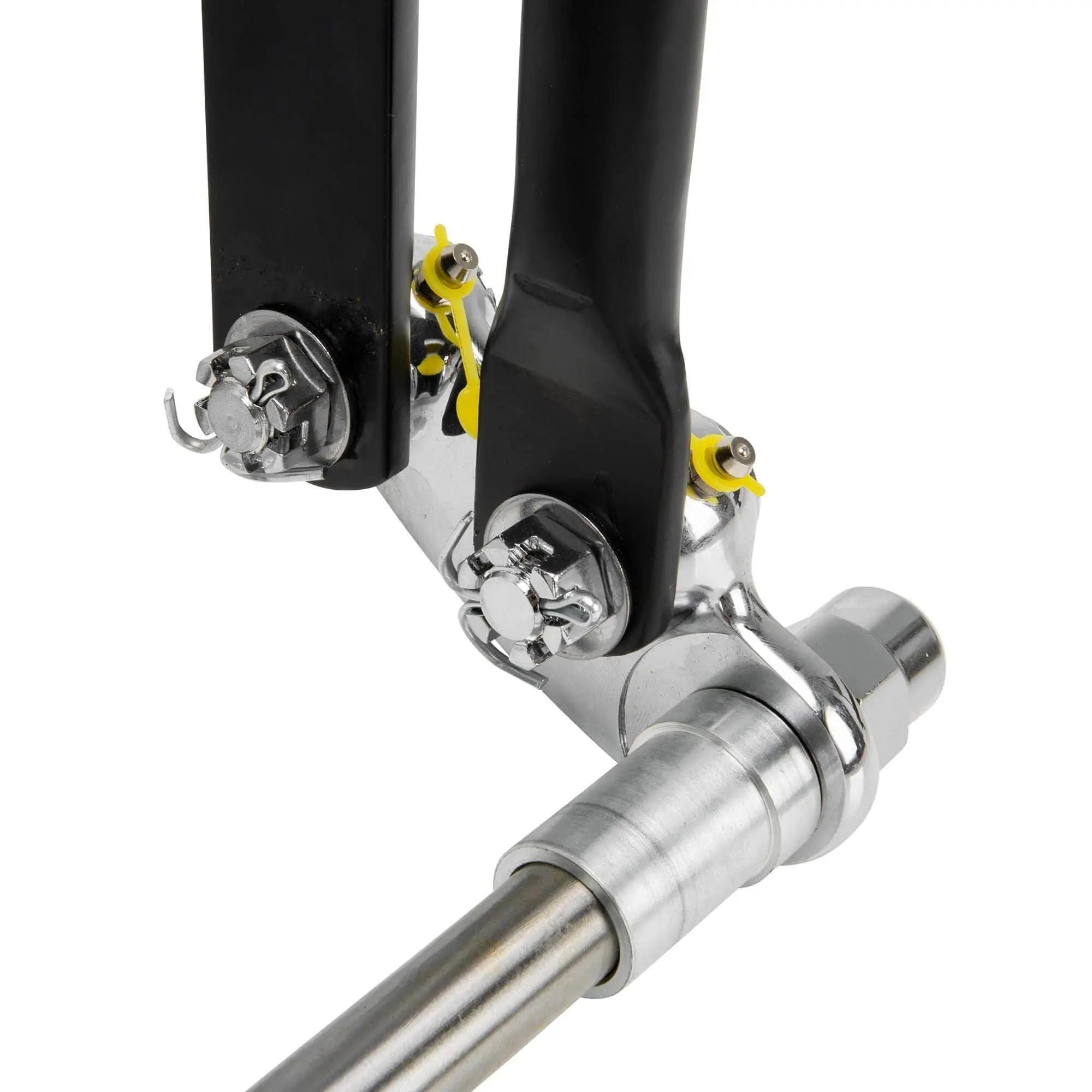

• Forged rockers for superior strength
• Rear legs are 1 piece from the rocker to the top tree

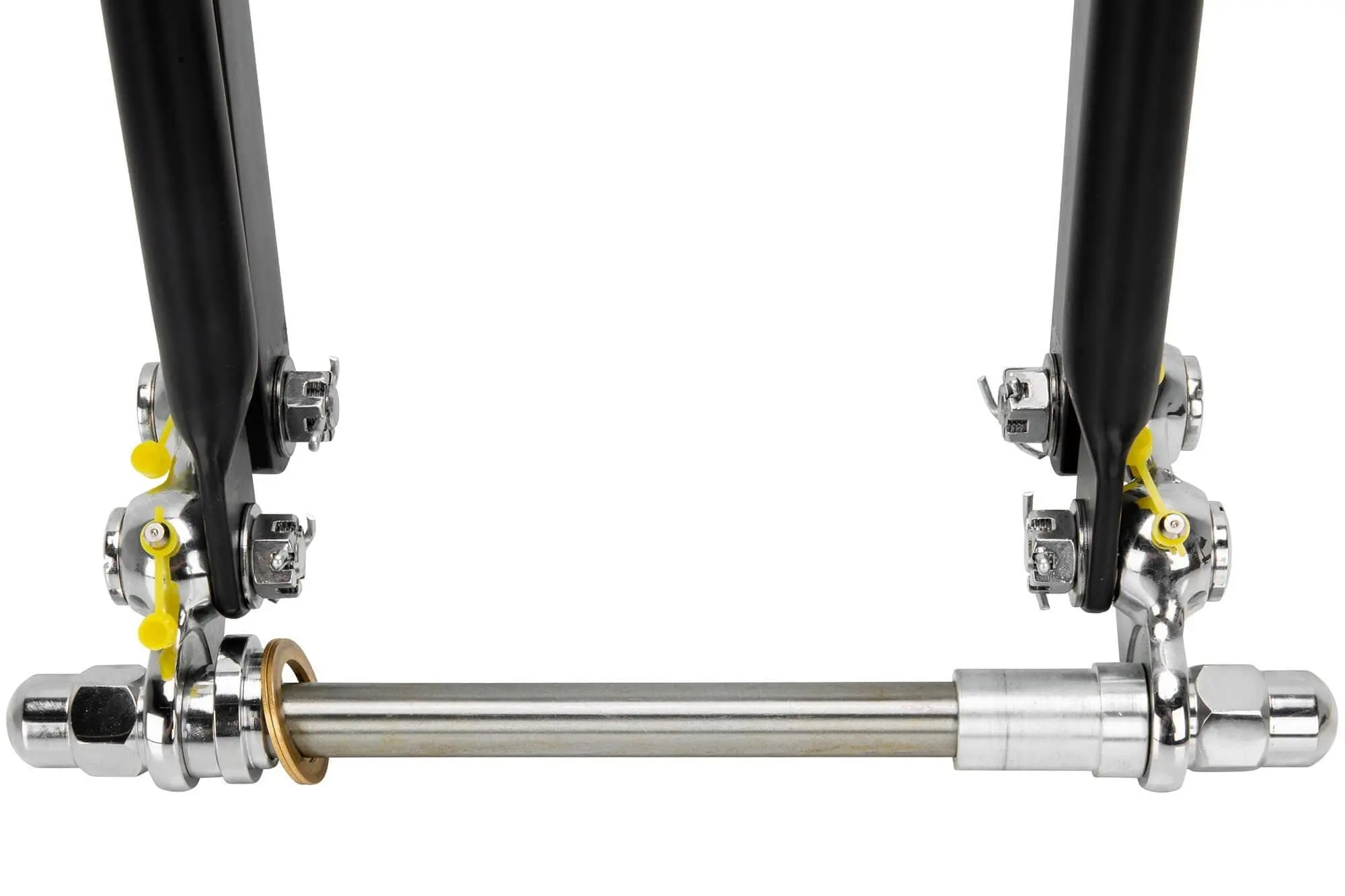

• The 3/4″ O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

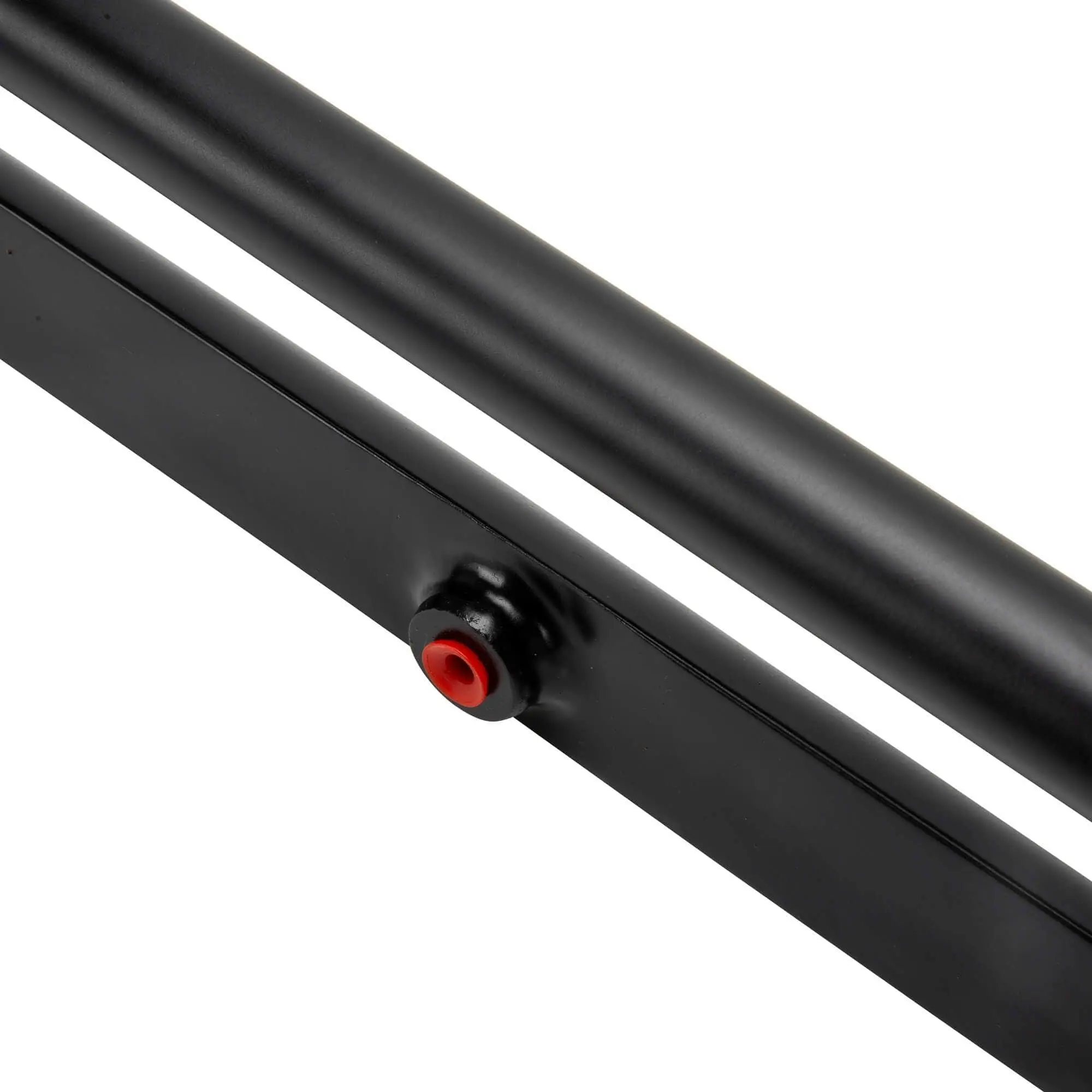

• 3/8”-24 threaded blind hole on fork leg for a brake stay
• Measures 9 1/4″ between rockers

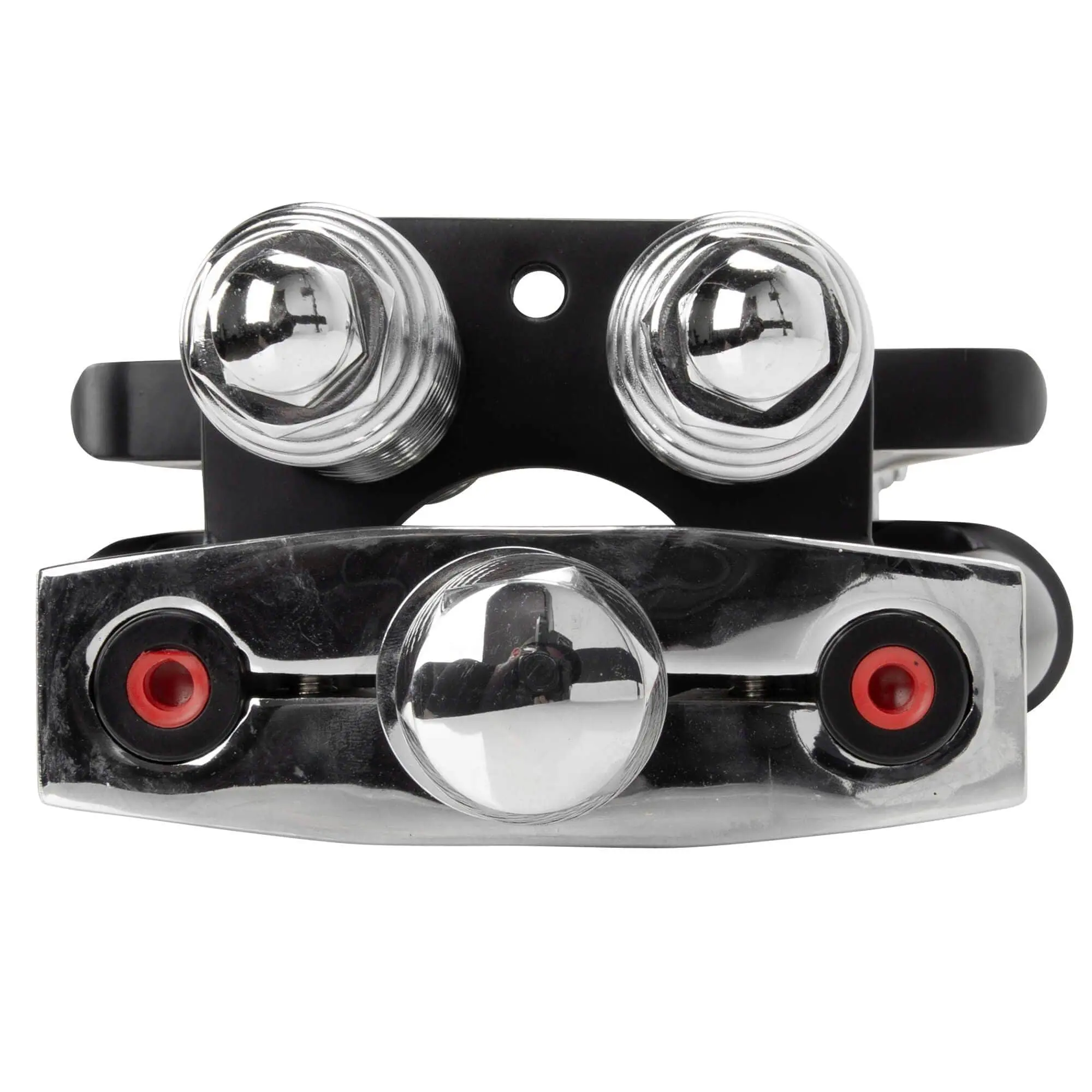

• Riser mounts are on 4 3/4″ centers and threaded 1/2-20
• 2″ under length = 22″

NOTE: This springer will NOT fit Harley-Davidson Dyna models, or 2004 & later Sportster models due to the design of the frame neck and turning radius issues.

If you are looking for a 21″ chopper spool wheel to pair with this springer, we’ve got exactly what you need! The Lowbrow Customs 21″ Ribbed Spool Hub Wheel is a direct, bolt-on fit to this springer using one of our ready-to-install axle spacer kits!

Check out all of the Lowbrow Spool Wheels and Axle Spacer Kits here.
