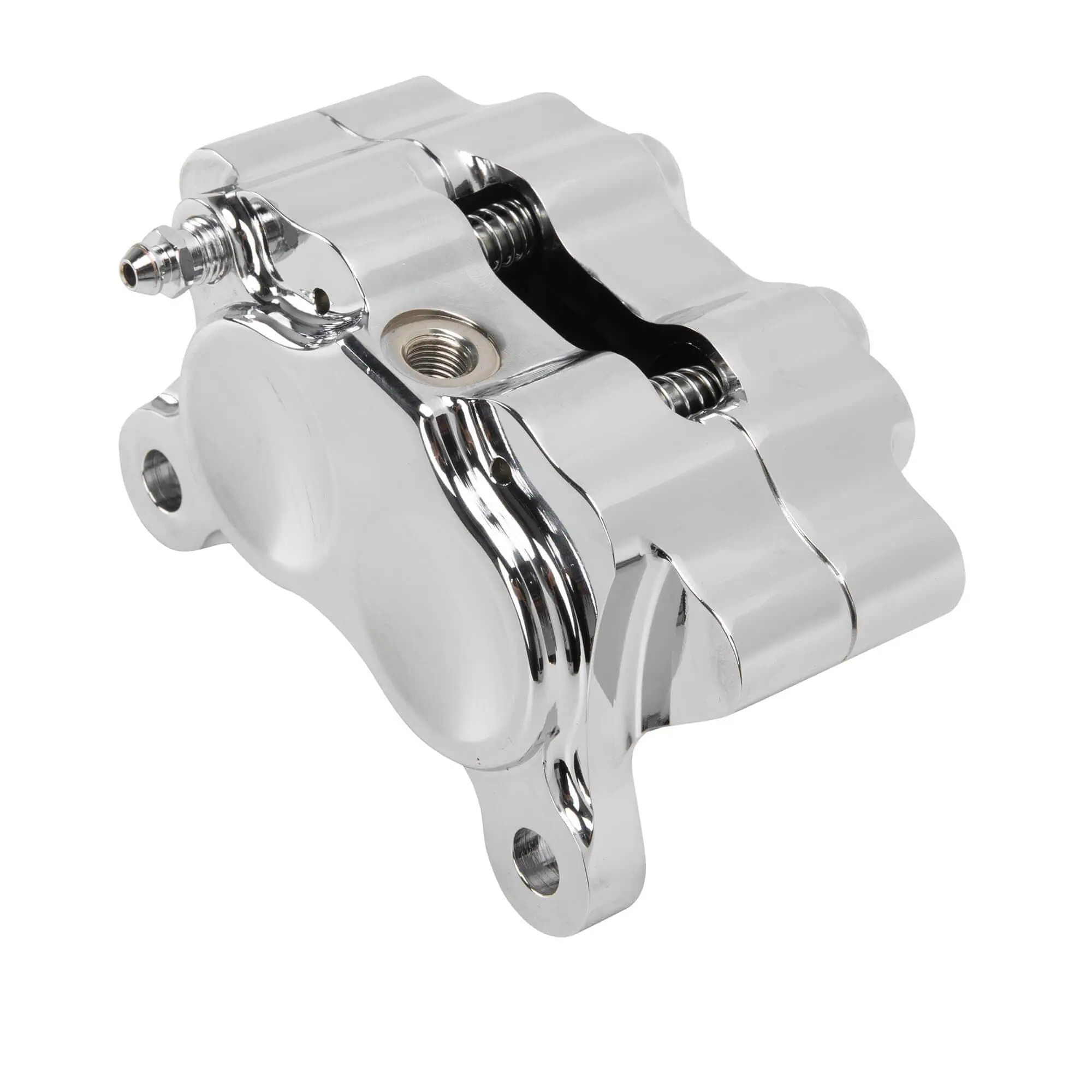

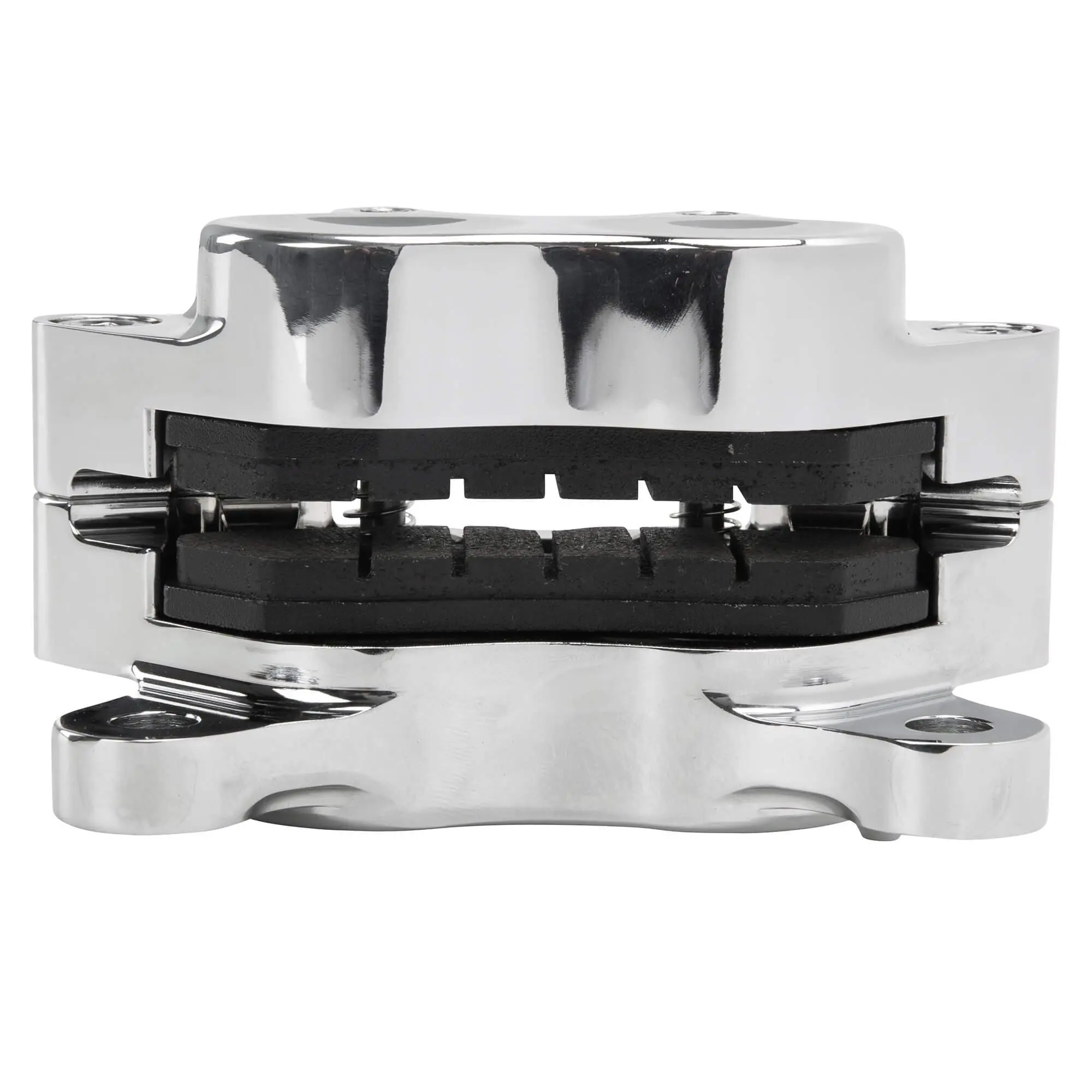

Mid-USA Four Piston Brake Caliper – Chrome

Don’t skimp on brakes! When it comes to brakes, ensure high quality from a brand you trust. The ability to stop fast is paramount to keeping you and your motorcycle in tip-top shape.

• CNC machined 6061-T6 billet aluminum, designed to eliminate flex
• The pistons are hard anodized aluminum for superior operation and long life
• Centerless ground or exacting tolerances
• Quad seal for smooth action
• Brake pad springs eliminate rattles and aid in caliper installation
• Front or rear applications
• Requires separate caliper bracket
• Uses DOT 5 brake fluid
• Mounting holes are 3.5″ center-to-center
• Accepts a 3/8 x 24 banjo bolt

NOTE: An 11/16″ bore master cylinder is required for the two piston caliper, and a 3/4″ bore master cylinder for 4 piston calipers.
