Lowbrow Customs Weld-On Hardtail Rear Frame Section 1982-2003 Harley Sportster

Frames are EXCLUDED from the $99 & up Free Economy Shipping special.
For more info on frame shipping see the Frames section of the

FAQ

. – Fits Harley-Davidson Sportsters 1982 – 2003, perfect, flawless fit.

– Engineered for ultimate strength and style
– Accepts stock rear wheel and axle, slick custom axle adjusters are included
– 3 inch stretch, 1 inch drop compared to stock wheel base
– Made in the USA

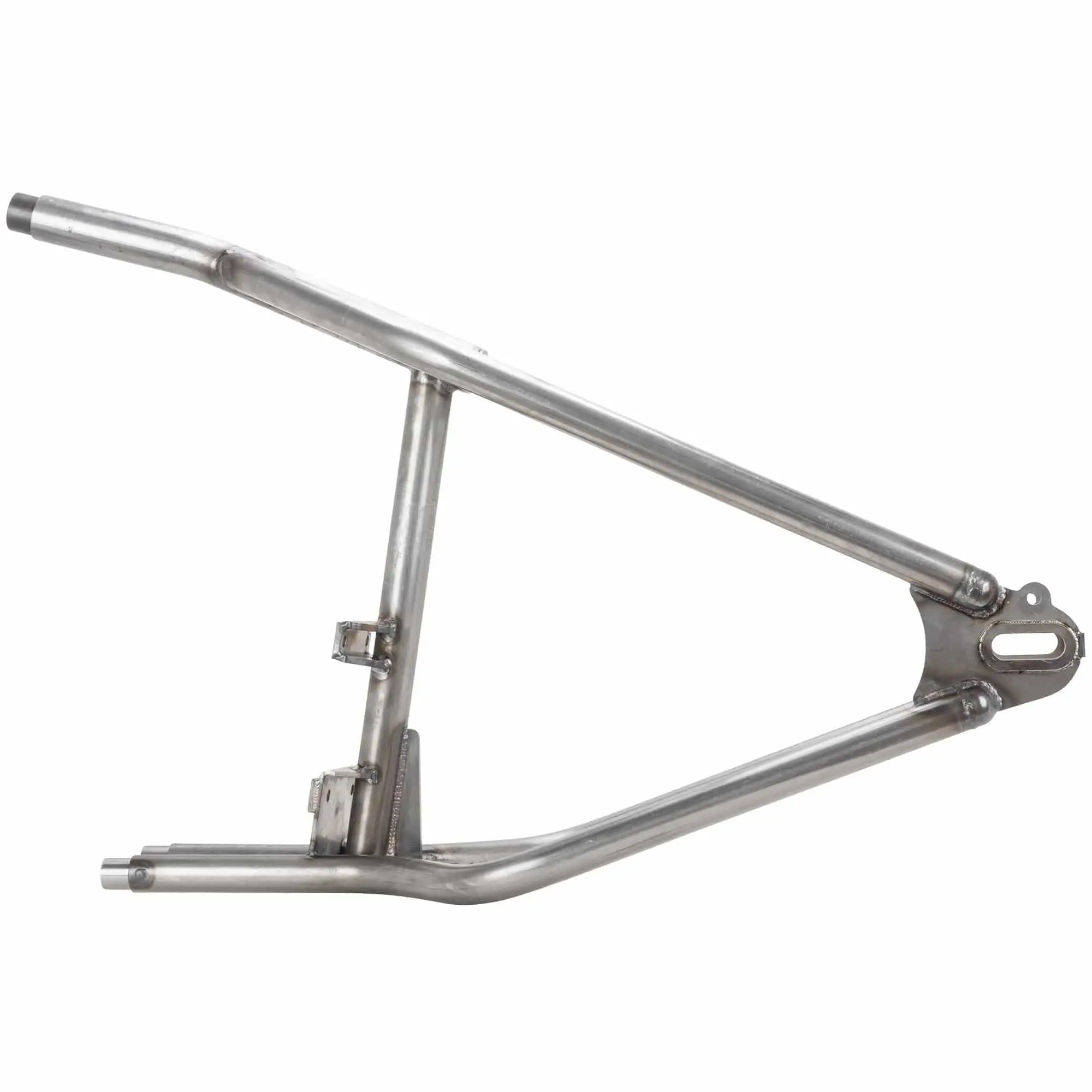

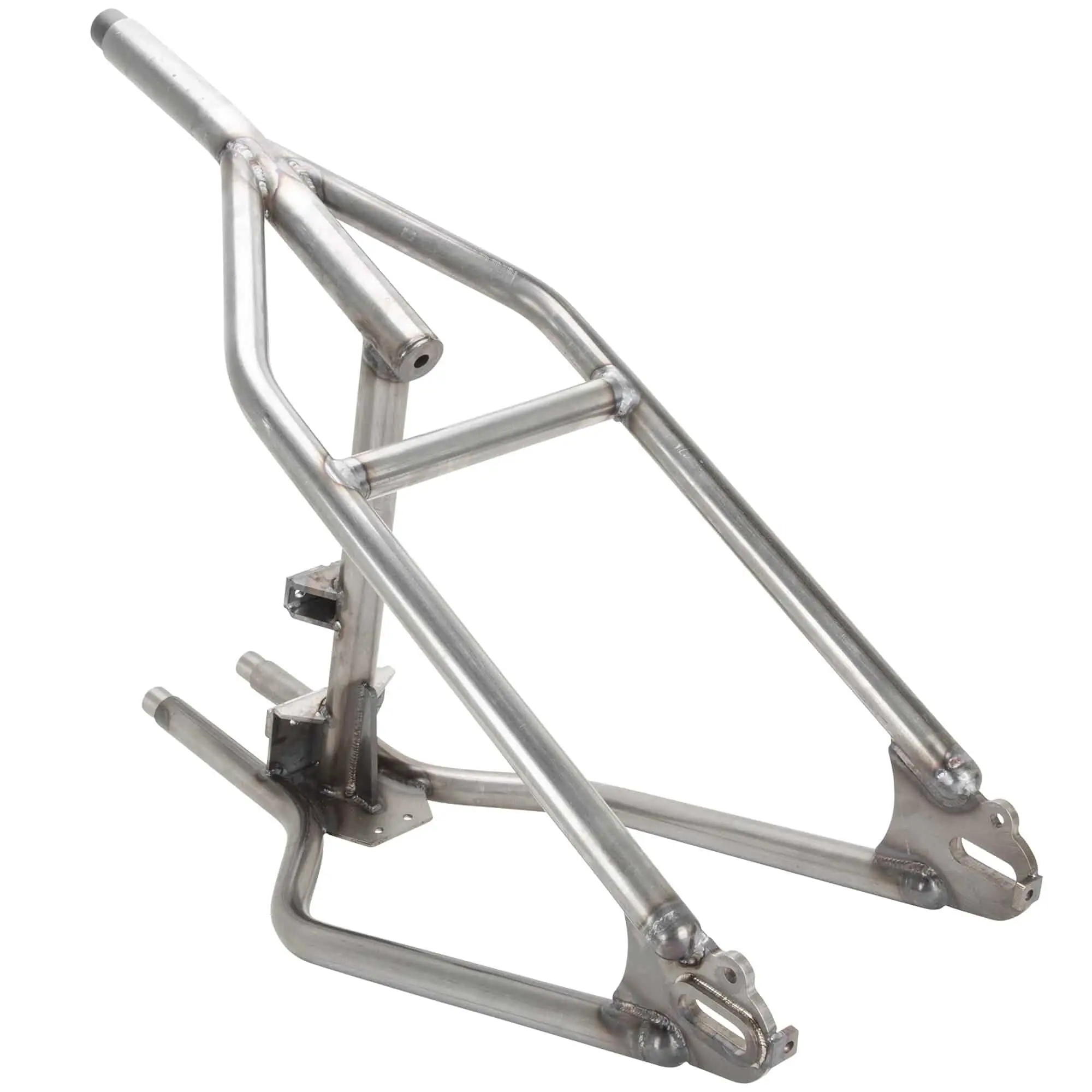

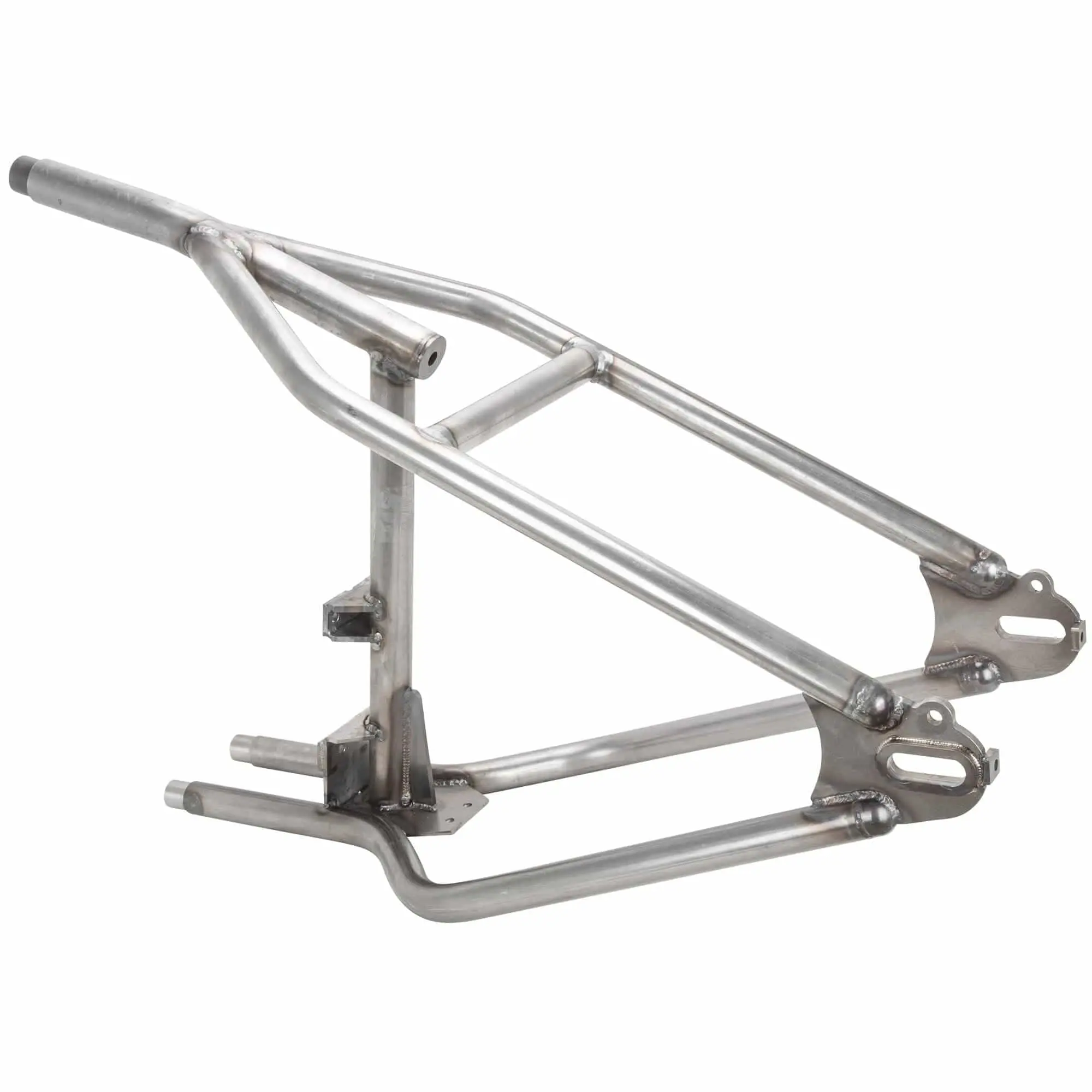

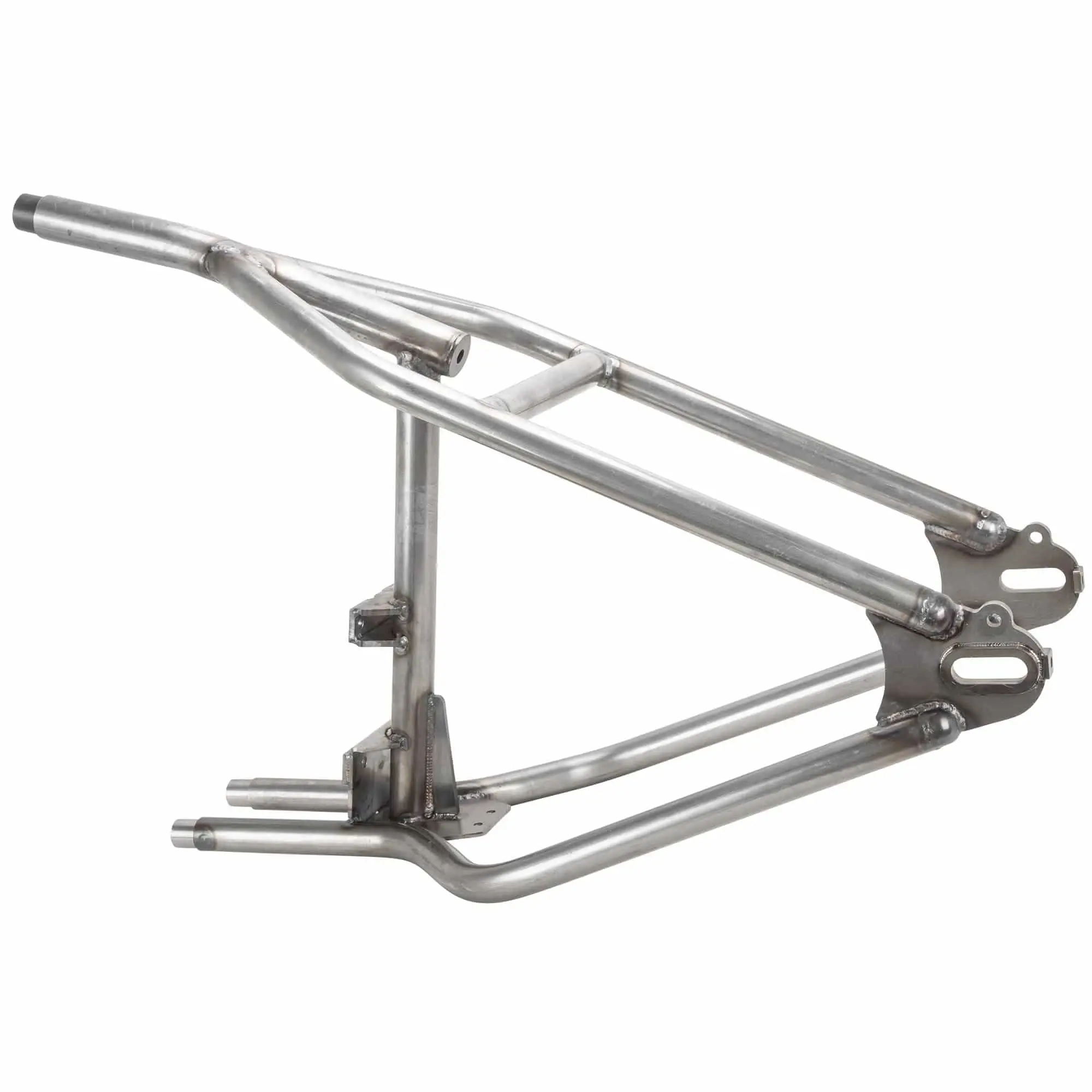

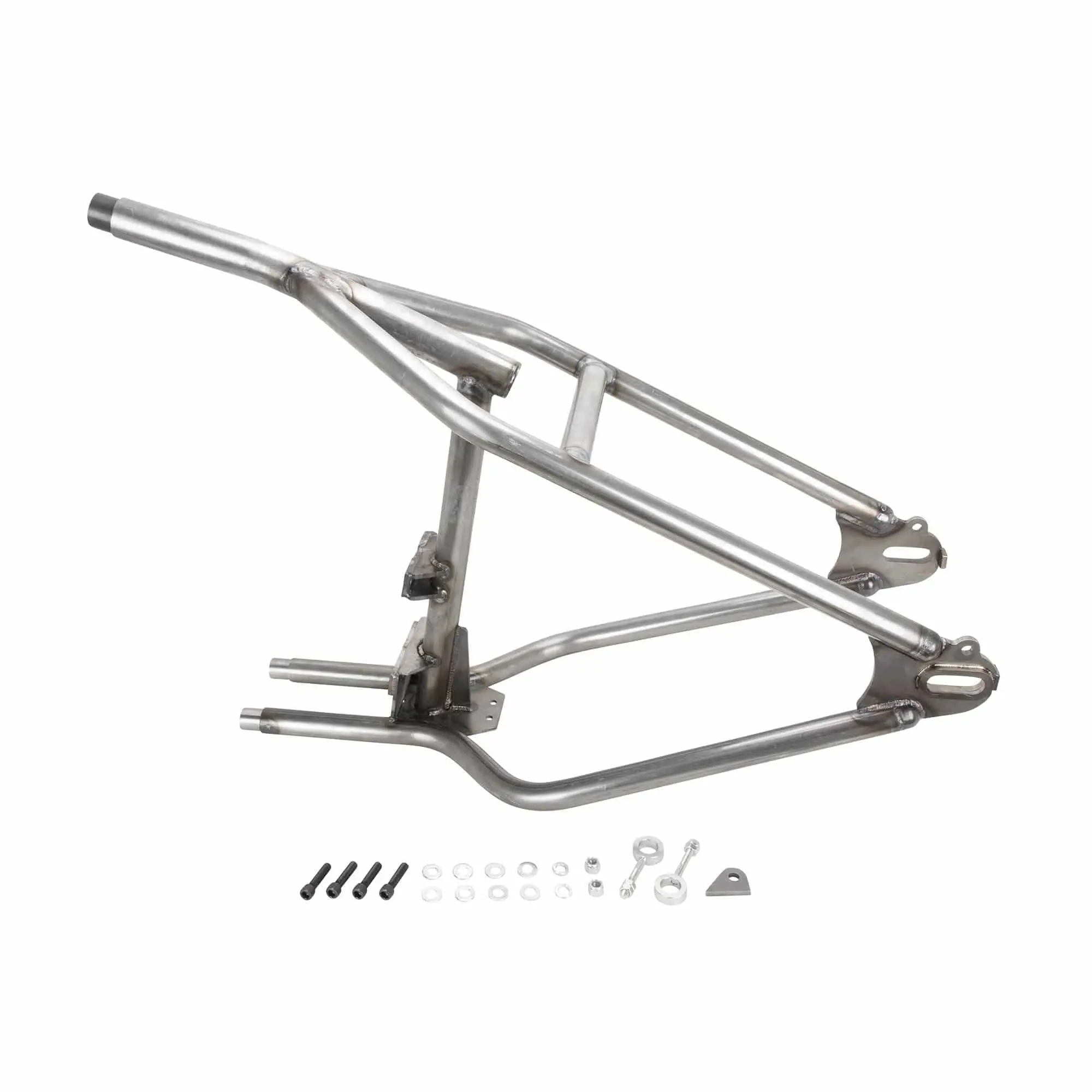

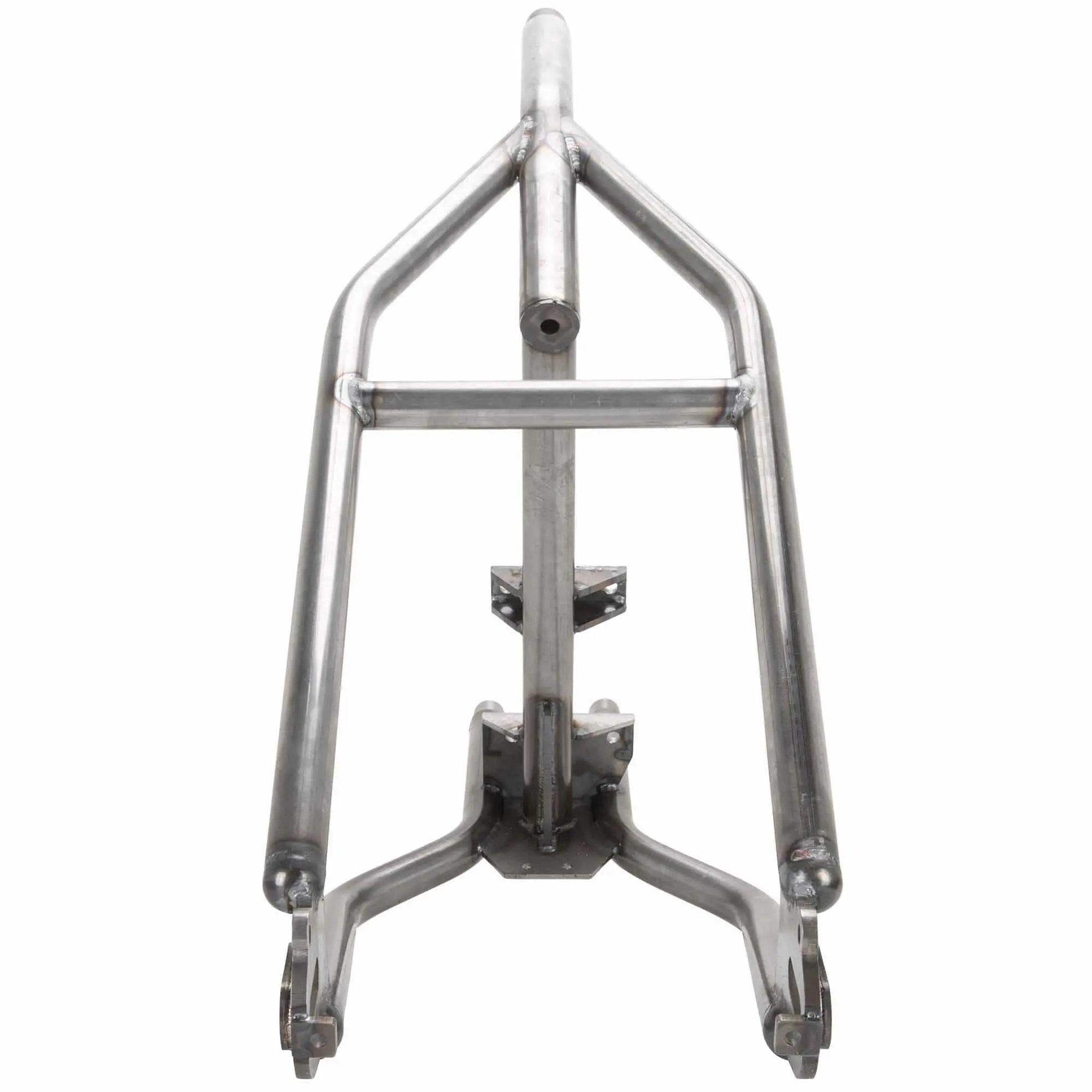

This

weld-on hardtail rear frame section

from Lowbrow Customs is an absolute perfect fit on stock 1982 – 2003 Sportsters (stock front frame section not included). These

motorcycle hardtails

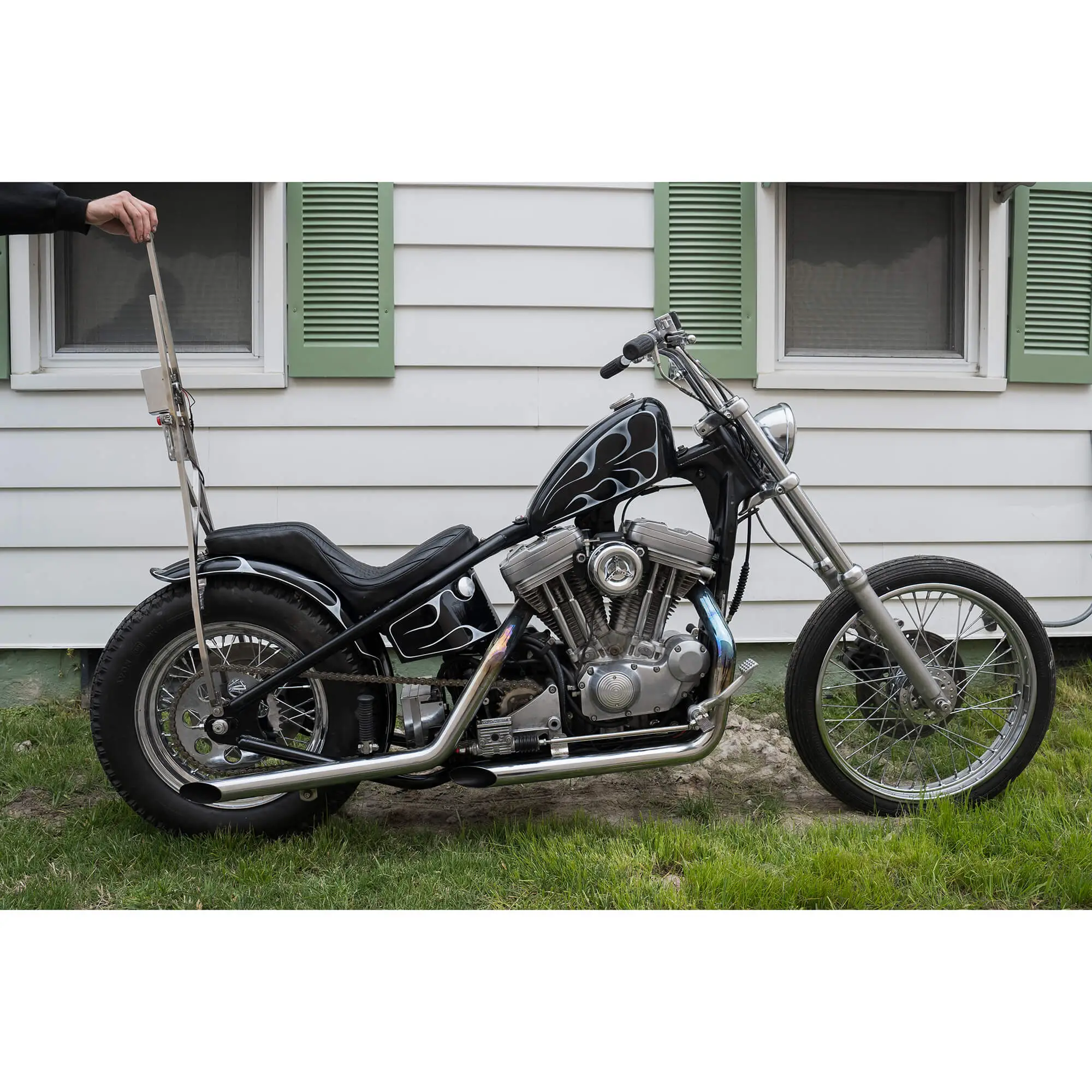

are a 3 inch stretch and 1 inch drop compared to a stock Sportster. This means axle-to-axle the hardtailed bike will be 3 inches longer, and have 1 inch less ground clearance. This is the perfect blend of style and performance. Frames are 100% professionally TIG welded. Proudly made in Cleveland, Ohio, USA.

Check out the

Lowbrow Horseshoe Oil Tank

made specifically for this hardtail (sold separately). It offers easy installation and a perfect fit! We also offer a

Bolt-On Battery Box & Fender Mount

made specifically for this frame. It allows you to bolt a battery box and also conveniently serves as the lowest mount on your rear fender.

Installation of this hardtail frame is easy and takes only an afternoon. All tubing matches the stock frame tubing diameter, with a 1-5/8 inch backbone and 1-1/4 inch diameter lower rails. This blends the installed hardtail seamlessly into your stock frame. Using a hardtail section allows you to keep the original VIN number and title. We suggest using ER70S welding rod when installing this hardtail, either 1/16″ or 3/32″ diameter.

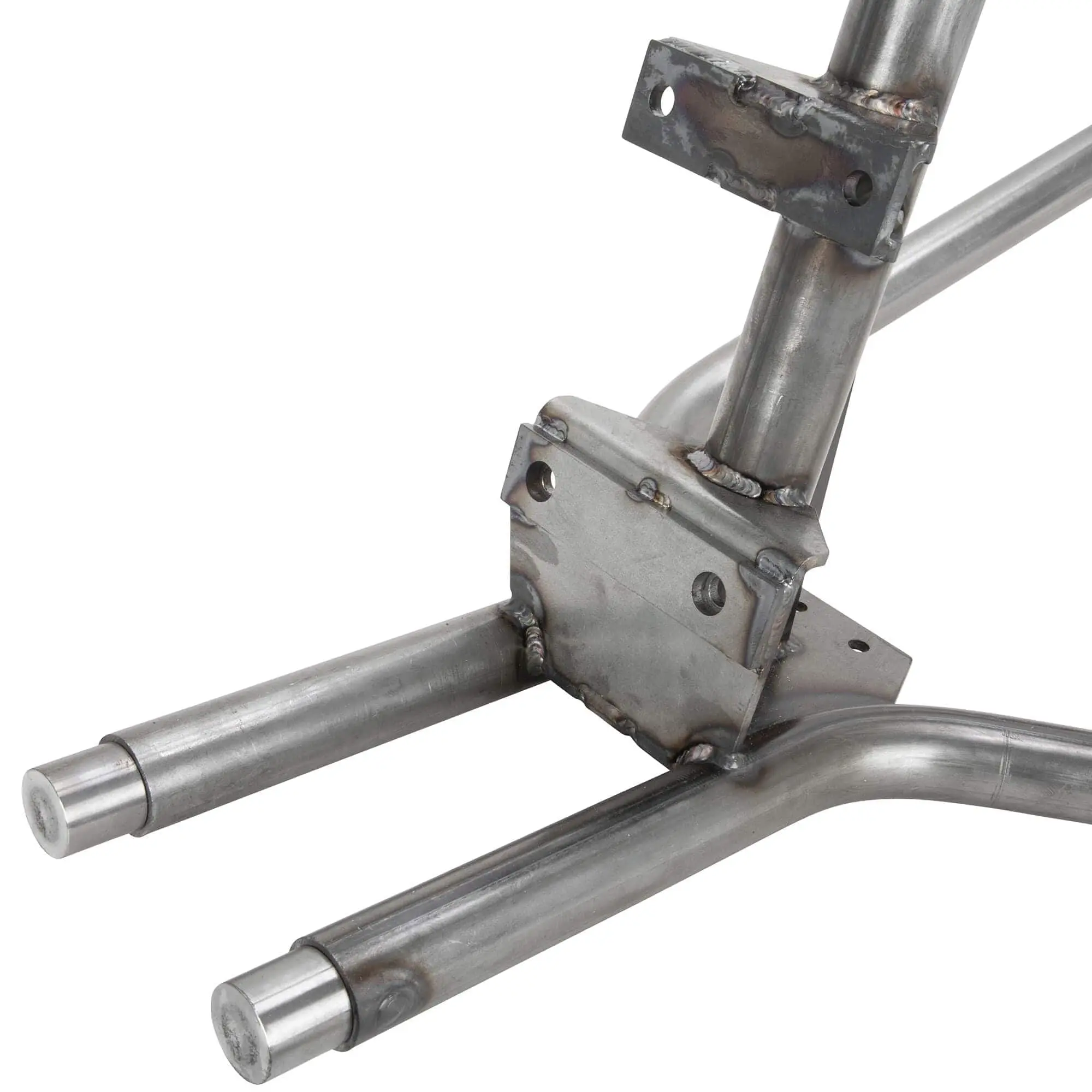

The stock frame is simply cut and the hardtail slid in place using the pre-installed slugs. The upper slug is tubing and allows any wiring (headlight, handlebar switches) to be run through the backbone of the frame, exiting right above the battery box and oil tank. The lower slugs are solid steel and are machined to be a perfect fit inside the lower frame rails. A 1/4 inch thick brake stay tab is included but not welded in place. Based on what style rear brake is used, aftermarket or stock, year range of stock components, etc, the location of the brake stay tab can change.

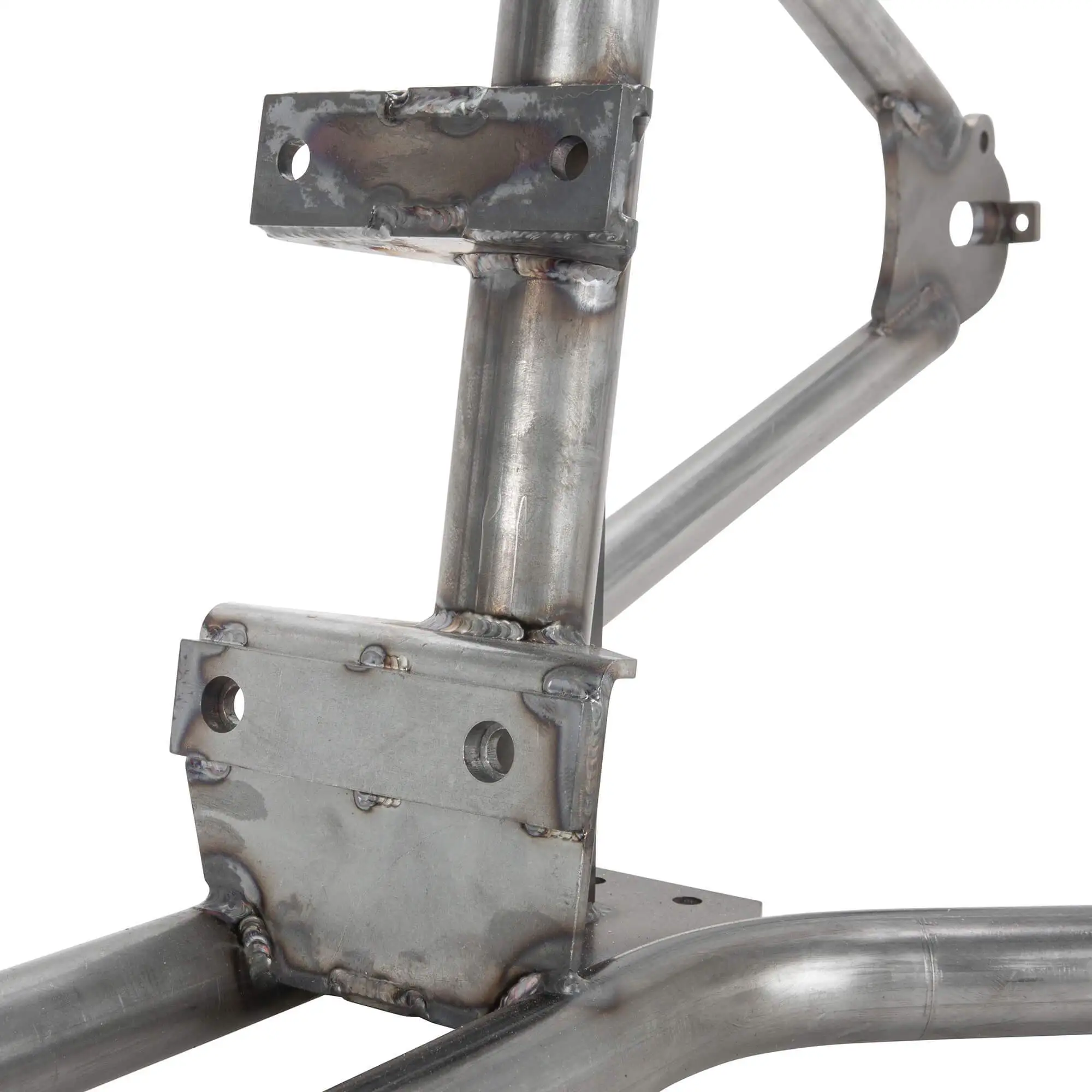

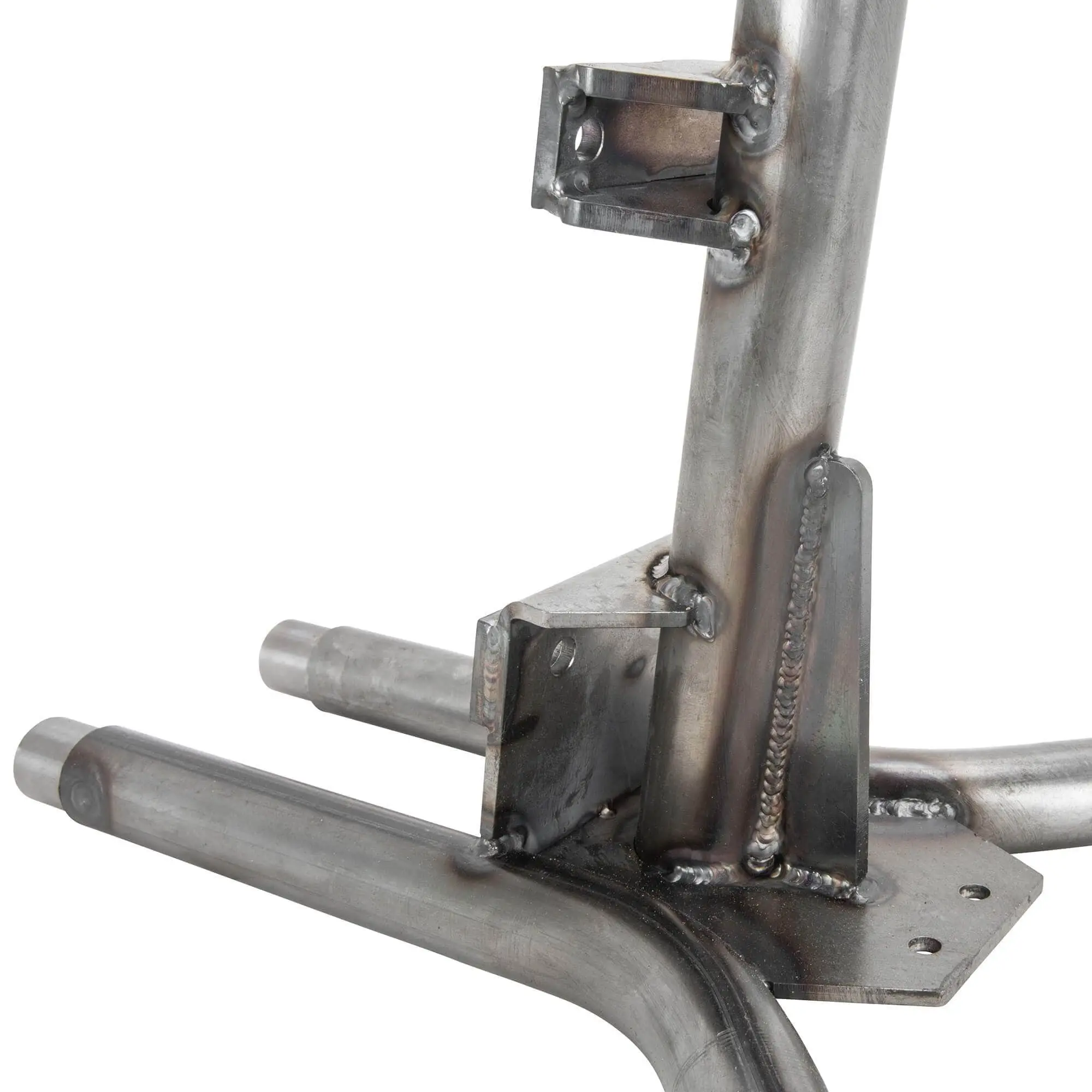

The entire rear motor mount area is designed to be as strong as possible and will handle any motor no matter how built. The rear motor mount bolts are very easy to access with our unique design, which adds to the ease of installation. Rear axle plates have doublers welded in place so the rear axle is a perfect fit (and also looks great). The doublers have another purpose, which is that they are the only spot your axle head and axle nut touch on the frame, saving the rest of the frame’s paint when adjusting the rear wheel and chain. Integrated in the axle plate design are convenient 3/8 inch holes for rear fender struts. Each hardtail includes a set of axle adjusters that will work with stock 3/4 inch rear axles. The adjusters tuck in behind the axle plates, keeping them hidden, and they are adjusted from the rear of the axle plate. This is very similar to an Ironhead Sportster setup, which allows the rear wheel and chain to be adjusted with ease while keeping everything copasetic.

Note: There are no returns on carburetors, electrical items, full frames, hardtails or made-to-order items (such as magnetos) unless there is a manufacturer’s defect.
