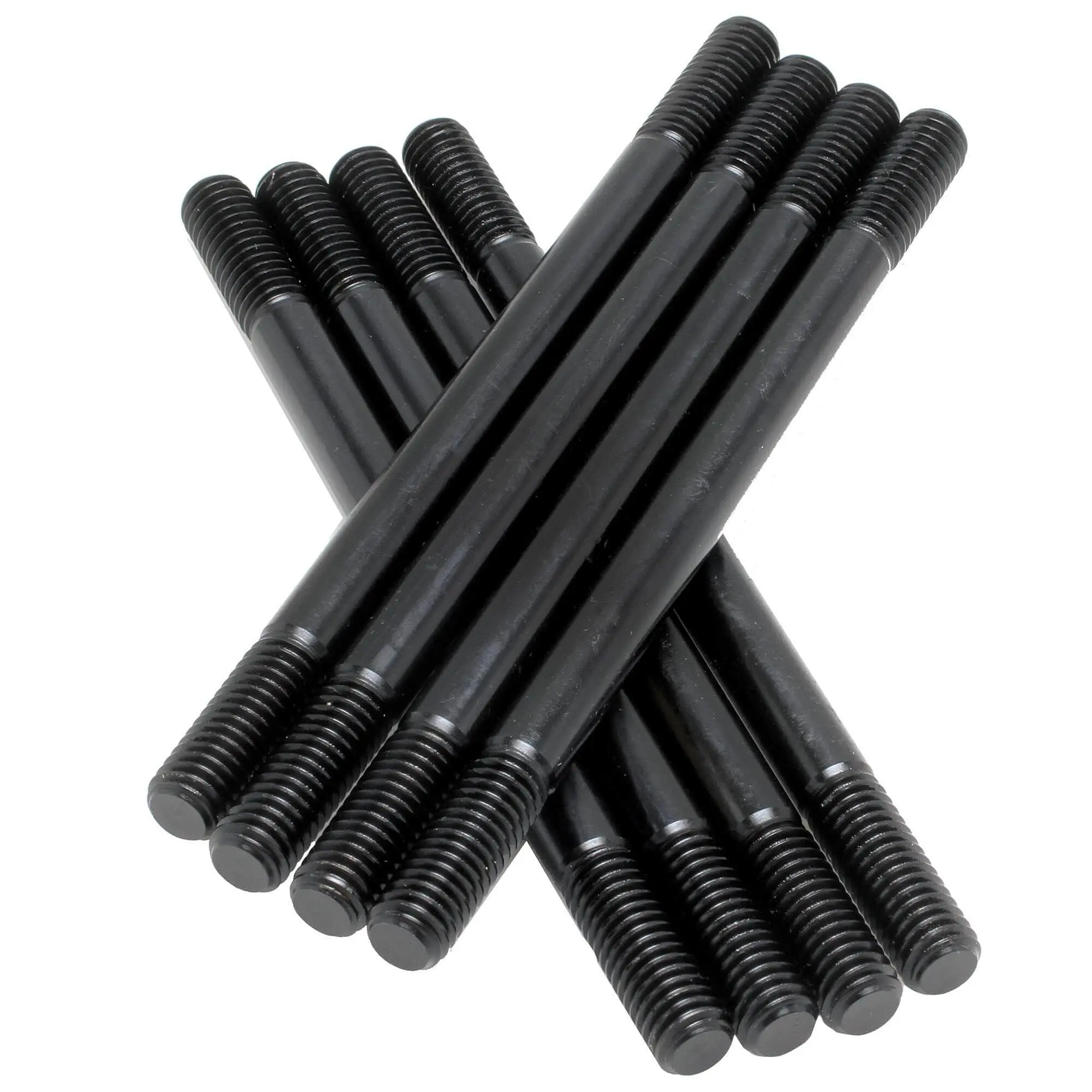

Kibblewhite Precision Machining Heat Treated Cylinder Studs – Std. Length – 2017-2020 Harley-Davidson M8

• Heat treated 180,000 PSI aircraft alloy steel
• Centerless ground to remove material imperfections
• Rolled threads for the strongest threads period
• Black oxide treated for enhanced corrosion resistance
• The M8 Cylinder Stud solution

KPMI Cylinder Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI rolls the threads, heat treats and then centerless grinds the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI Studs is to encase the entire stud with premium corrosion resistant treatment of Black Oxide.

Specifications:

• Quantity: Pkg. of 8
• Reference: See Figure 1
• “A”: 1.050″
• “B”: 1.200″
• Overall Length: 6.240″
• Body Diameter: 0.429″
• Material: H.T. Steel

See Additional Information below for fitment.
